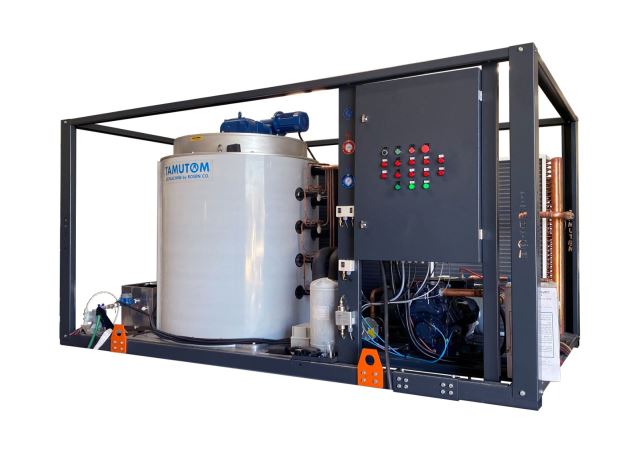

10000 KG/DAY FLAKE ICE MACHINE

FIM10T
FLAKE ICE MACHINE
TECHNICAL INFORMATION

• FRESH WATER

Total Ice Making Capacity: 10.000 kg /day
Water Type: Fresh (City) Water
Ice Making Cap. (Per Hour): 416.67 Kg
Ice Thickness: ~1,8 – 2 mm
Power Supply: 380-415 V, 3 Faz, 50-60Hz
Ice Temperature: Minus 5˚C
Refrigerant: Freon R404A
Unit Weight: 2000 KG
Unit Dimensions: 215cm*300cm*195cm
Power Consumption: 41,57 KW/h
Compressor Capacity: 50 HP
Condenser and Capacity: Air Condenser / 39016 M³/H
FLAKE ICE MACHINE

The 10 ton/day fresh water flake ice machine is a high-capacity and hygienic ice production solution for medium and large industrial operations. Using fresh water flake ice machine technology, it produces odorless, food-grade flake ice made from potable water. This is especially critical for fish processing plants, meat and poultry factories, dairy producers, and fruit and vegetable packaging centers. Thanks to the large surface area of flake ice, products are cooled rapidly and evenly, which slows bacterial growth and significantly extends shelf life.

10 ton flake ice machine systems are widely preferred in regions with strict food safety regulations such as the European Union, the Middle East, the Gulf countries, and North Africa. Export-oriented producers in these regions require hygienic ice that complies with HACCP and ISO standards, making fresh water systems the first choice. Large supermarket chains, fish markets, and centralized cold storage facilities also rely heavily on this capacity range.

From an industrial cooling perspective, 10 ton fresh water flake ice machines protect the quality of seafood, red meat, poultry, ready meals, fruits, and vegetables during storage and transportation. Because the ice is produced from fresh water, it leaves no salt or contaminants on the product surface, increasing market value. With low energy consumption, automated operation, and stable production, this industrial ice machine provides a highly efficient and cost-effective long-term solution.

We are manufacturers, not resellers.
Our flake ice machines are designed, manufactured, and tested in-house, allowing full control over quality, performance, and long-term reliability.

Built for real industrial conditions.
Our machines are engineered for continuous operation in demanding environments such as fisheries, food processing plants, and concrete cooling projects.

Proven 24/7 continuous performance.
Each system is tested under full-load conditions to ensure stable, uninterrupted ice production.

Lower energy consumption, higher efficiency.
Optimized refrigeration systems maximize ice output while minimizing energy usage.

Food-grade ice produced from fresh water.
Fresh water ice ensures hygienic and safe use for direct food contact applications.

Project-based solutions, not standard products.
Each project is evaluated individually to provide customized capacity and system configuration.

Proven performance in international projects.
Our machines operate successfully in industrial projects across multiple countries.

Why Choose Our Flake Ice Machines?

  • Manufacturer-direct production
  • 24/7 industrial operation
  • Food-grade fresh water ice
  • Low energy and maintenance costs
  • Project-based engineering
